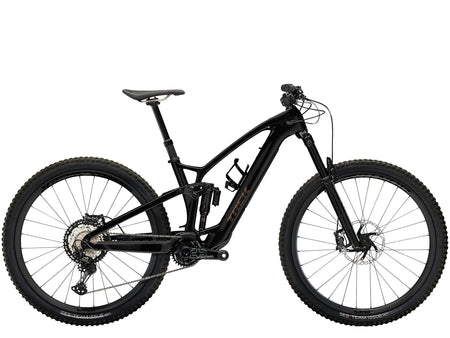

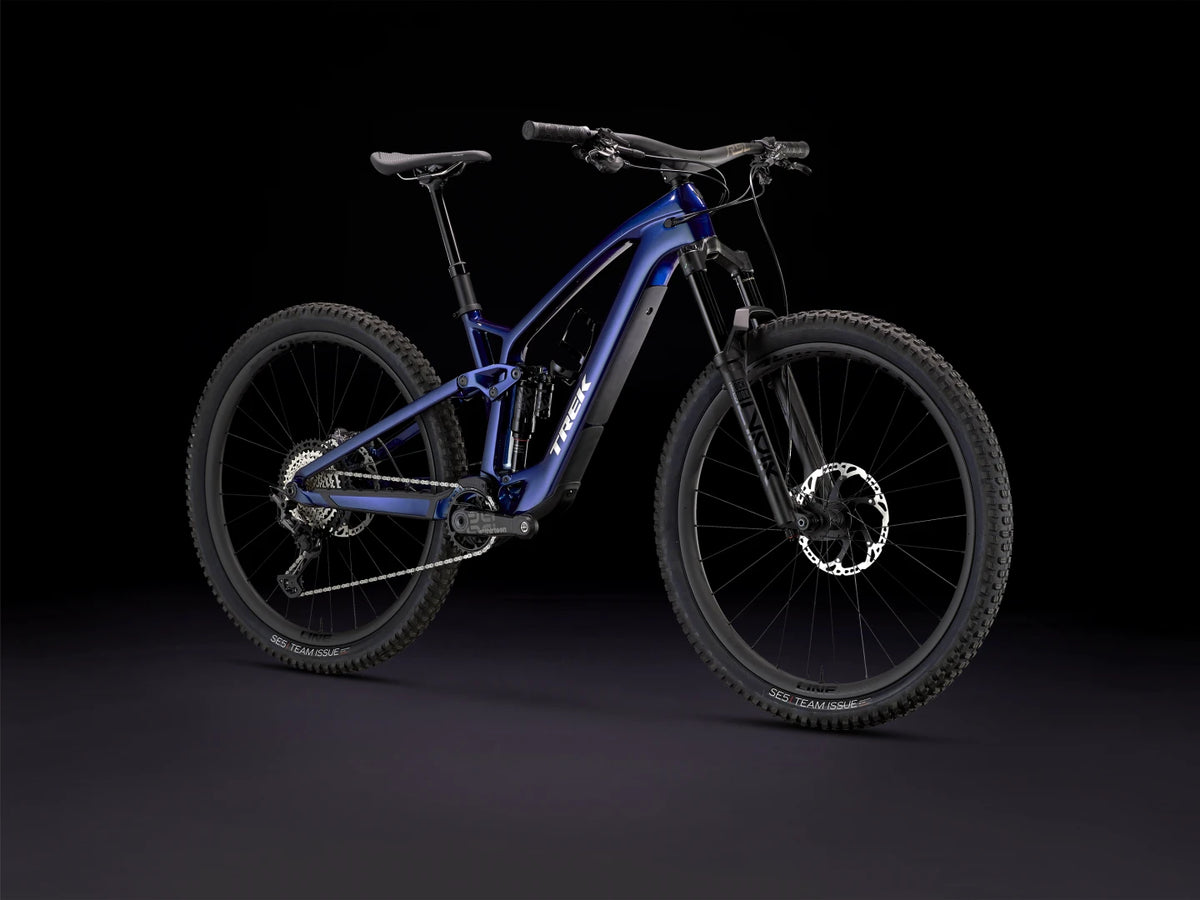

Trek Fuel EXe 9.8 XT
Couldn't load pickup availability
Fuel Exe 9.8 XT is a new generation of mountain bike that brings virtually invisible power to the trails in a compact electric package that adapts to your riding style. This bike features a small but powerful TQ drive system that provides assistance when needed but fades into the background on descents, giving you the feel of a true trail bike experience. The carbon fibre frame keeps the bike light and responsive, while the new RockShox suspension pairs with the Shimano XT rear derailleur to complete the bike: a perfect balance between performance and price.
Specifications
Frameset

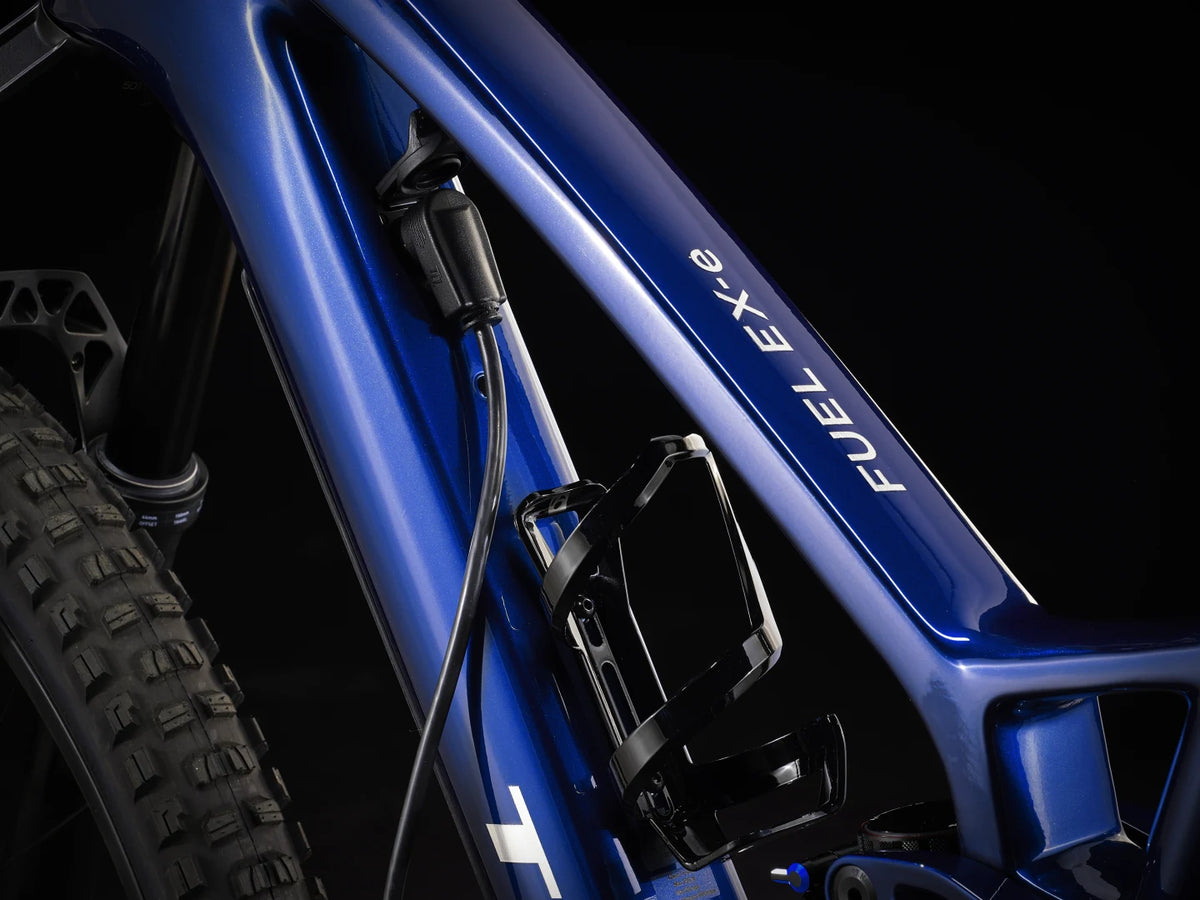

| Frame | OCLV Mountain carbon, removable battery, internal cable routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
|---|---|
| Fork | RockShox Lyrik Select+, DebonAir spring, Charger 2,1 RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth 15mm, 150mm travel |
| Suspension | RockShox Super Deluxe Select+ RT, 205mm x 60mm |
Wheels
| Front Wheel | Bontrager Line Elite 30, OCLV Mountain carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru-axle |
|---|---|
| Rear Wheel | Bontrager Line Elite 30, OCLV Mountain carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru-axle |
| Rear Axle | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120tpi. 29x2.50” |
| Tyre Component | Bontrager TLR sealant, 6oz |
Drivetrain
| Shifter | Shimano XT M8100, 12-speed |
|---|---|
| Rear Derailleur | Shimano XT M8100, long cage |
| Crankset | E*thirteen E*spec Plus, 34T, 165mm length |
| Crank Arm | E*thirteen E*spec Race, carbon, 34T, 165mm length |
| Chainring | E*thirteen E*spec, 32T alloy chainring, 55mm chainline |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
Components
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
|---|---|
| *Seatpost | Size: S Bontrager Line Elite dropper seatpost, 100mm travel, MaxFlow, internal cable routing, 34.9mm, 345mm length |
| Size: M Bontrager Line Elite dropper seatpost, 150mm travel, MaxFlow, internal cable routing, 34.9mm, 440mm length |
|
| Size: L Bontrager Line Elite dropper seatpost, 170mm travel, MaxFlow, internal cable routing, 34.9mm, 485mm length |
|
| Size: XL Bontrager Line Elite dropper seatpost, 200mm travel, MaxFlow, internal cable routing, 34.9mm, 550mm length |
|
| *Integrated Handlebar + Stem | Size: S Bontrager RSL integrated handlebar/stem, OCLV carbon, 27.5mm handlebar rise, 820mm width, 0-degree stem rise, 35mm stem length |
| Size: M, L, XL Bontrager RSL integrated handlebar/stem, OCLV carbon, 27.5mm handlebar rise, 820mm width, 0-degree stem rise, 45mm stem length |
|
| Grips | Bontrager XR Trail Elite, nylon lock-on |

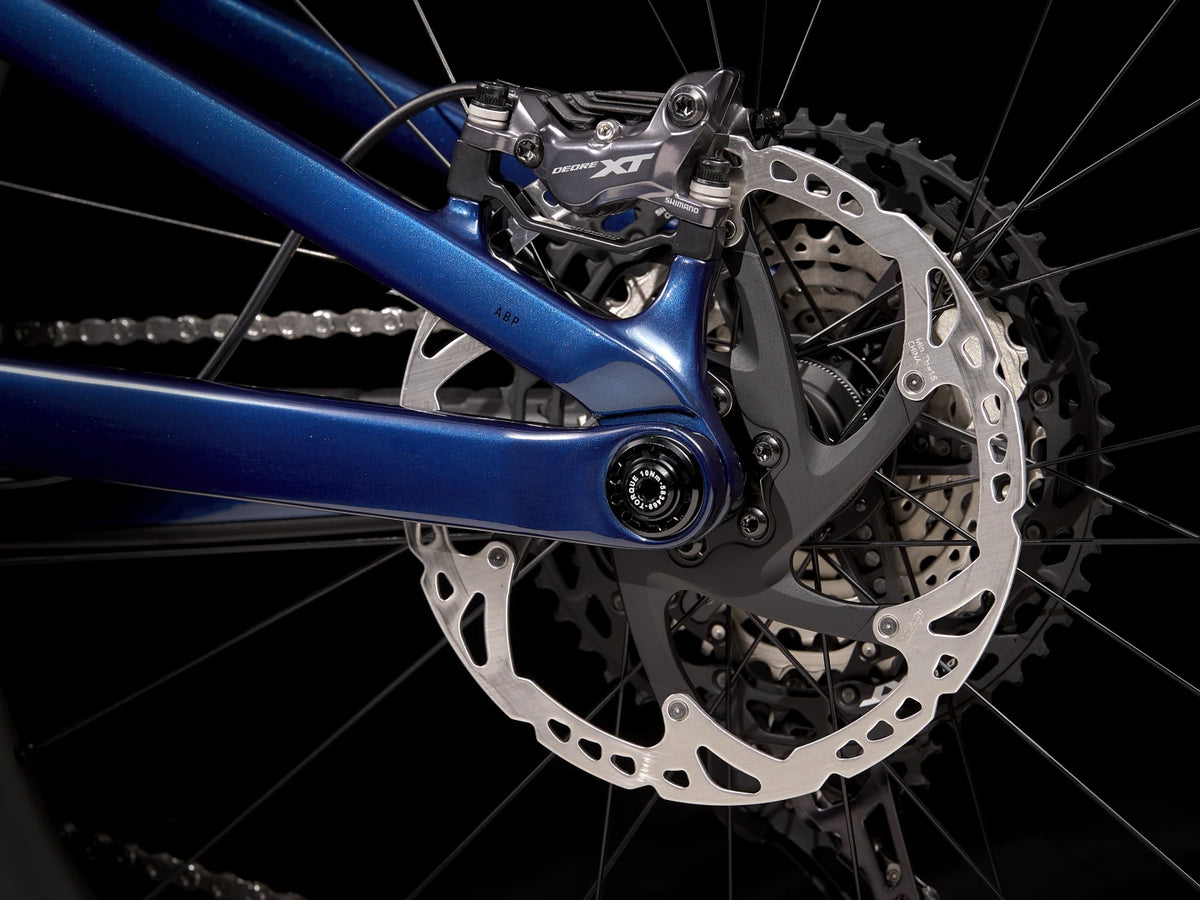

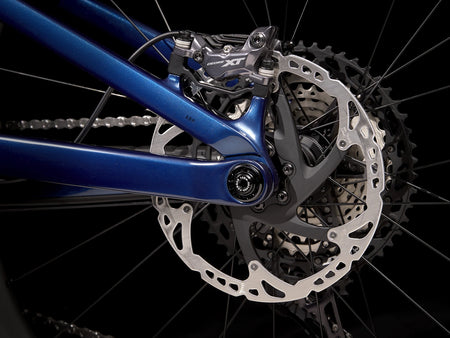

| Brake | Shimano XT M8120 hydraulic disc brake, 4 pistons |
| Brake Rotor | Shimano RT76, 6-bolt, 203mm |
Accessories
| Battery | TQ 360Wh |
|---|---|

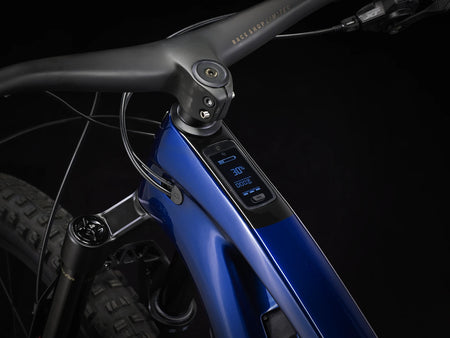

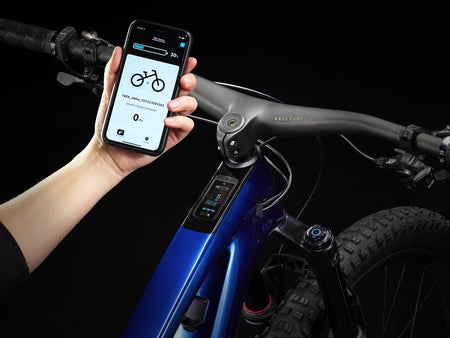

| *Controller | Size: S, M, L, XL LED TQ display with Bluetooth and ANT+ connectivity |
| Size: S, M, L, XL Handlebar-mounted TQ |
|
| Motor | TQ-HPR50, 50 Nm, 250 watts maximum continuous rated power, 300 watts peak power |
| Electronics | TQ 4A battery charger |
Weight
| Weight | M - 18.10 kg / 39.91 lbs (with TLR sealant, without inner tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bike, rider and load) of 136kg. |
*The manufacturer reserves the right to change information on the website without notice, including specifications, models, colours and materials.
*Images are for illustrative purposes only and may not match the product description.
Sizes
| Size | Rider height | Inside leg |
|---|---|---|
| S |
155 - 165 cm 5'1" - 5'5" |
74 - 78 cm 29" - 31" |
| M |
165 - 176 cm 5'5" - 5'9" |
79 - 83 cm 31" - 33" |
| L |
177 - 188 cm 5'10" - 6'2" |
84 - 89 cm 33" - 35" |
| XL |
188 - 195 cm 6'2" - 6'5" |
89 - 91 cm 35" - 36" |
