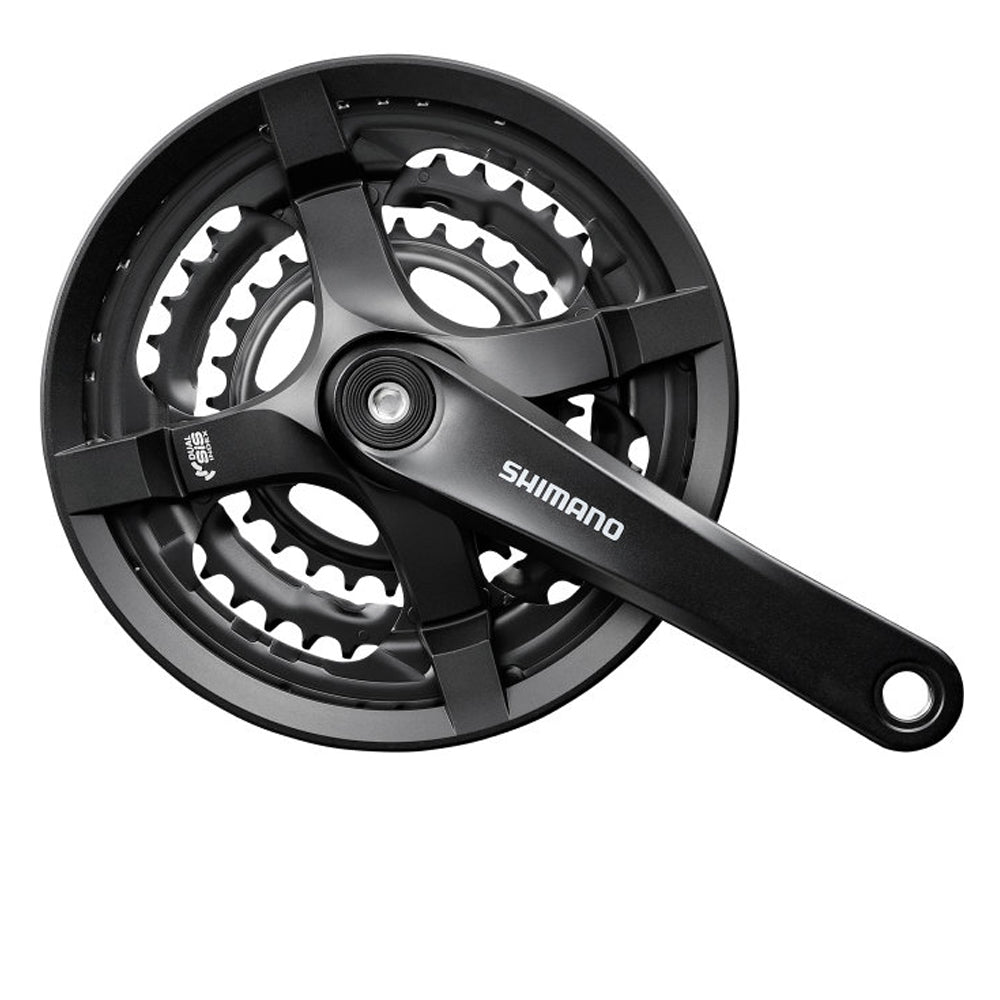

Shimano Tourney 8-Speed Crankset
Couldn't load pickup availability
Looking for a Shimano Tourney 8-speed crankset with 170 mm crank arms? This replacement is for riders who need to replace their bike's crankset while retaining the JIS square taper interface, which requires a 122 mm axle. The compatible chain is the Shimano 6-, 7- or 8-speed HG/UG, while the Q-factor is 185.5 mm. The bottom bracket is not included: check the shell width, 68 or 73 mm, before buying.
The 24-34-42t/CG, with smaller chainrings, makes climbing easier. The chainline is 50 mm for 135 or 142 mm shells.
| Crank arm length | 170 mm |
|---|---|
| Chainrings | 42-34-24 teeth (with chainguard) |
| Q-factor | 185.5 mm |
| Interface | JIS square taper |
| Required axle length | 122 mm |
| Bottom bracket | not included |
| Bottom bracket shell width | 68 mm, 73 mm |
| Chainline | 50 mm (for 135/142 mm) |
| Materials | aluminium, plastic, steel |
| Chain compatibility | Shimano 6/7/8-speed HG/UG |
Founded in 1921 in Sakai, Japan, by Shozaburo Shimano, Shimano is still based in the same city today. For cyclists, it makes drivetrains, brakes, wheels, pedals and cycling shoes. Its history in bicycle components began with the production of freewheels in 1922.
Manufacturer
Shimano Inc.
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan
bike.shimano.com/it-ITproduct-safety.html
EU responsible person
Shimano Europe B.V.
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands
info@shimano-europe.com
Product identifier
EAN 4524667634041 · SKU 123902
