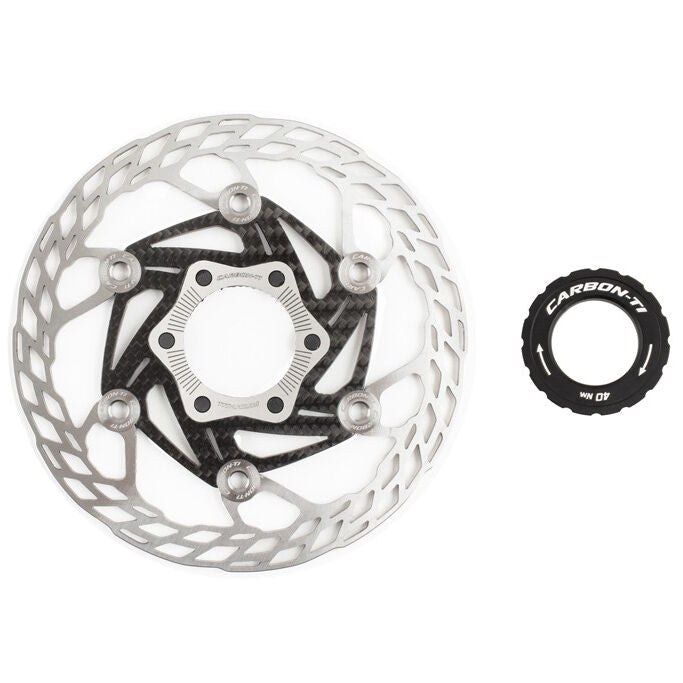

Carbon-Ti X-Rotor Steelcarbon 3 Center Lock Brake Rotor

The Carbon-Ti X-Rotor Steelcarbon 3 brake rotor is a lightweight Centerlock rotor for bikes with disc brakes. It is for you if you want to reduce wheel weight. Available in 140 and 160 mm.

• Lightweight: 86 g for the 140 mm and 98 g for the 160 mm, including Centerlock adaptor
• 1.8 mm stainless steel braking surface on a carbon fibre inner body
• Fits Centerlock hubs with 12, 15 or 20 mm thru-axles
• Does not fit Campagnolo or Fulcrum AFS wheels: check your hub before ordering
• Choose between 140 and 160 mm; organic brake pads are recommended for the 140 mm

Technical specifications

• Diameter: 140 mm, 160 mm
• Mount: Centerlock
• Braking surface: 1.8 mm stainless steel
• Inner body: carbon fibre
• Rivets and washers: Grade 5 titanium
• Centerlock adaptor: AL7075 aluminium
• Weight 140 mm: 86 g, including Centerlock adaptor
• Weight 160 mm: 98 g, including Centerlock adaptor
• Compatibility: Centerlock hubs with 12, 15 or 20 mm thru-axles; not compatible with Campagnolo or Fulcrum AFS
• Pack contents: 6-bolt rotor, Centerlock adaptor, titanium protective plate, low-profile lockring
• Brake pads: organic pads recommended for the 140 mm version
