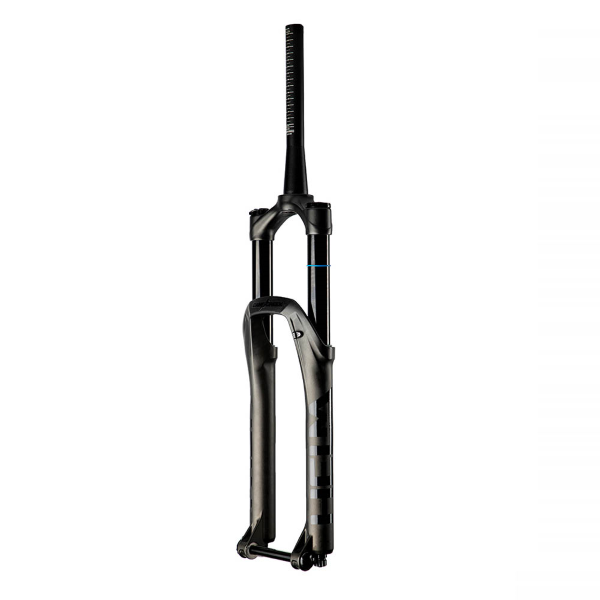

Cane Creek - HELM Mark II AIR Fork 27.5"

High Speed Compression, Low Speed Compression, Low Speed Rebound Air volume adjustment (8-posizioni of the token in the air chamber using
the "Internal indexed system")
Increased air volume for greater linearity
New air piston to reduce friction
New compression circuit and intermediate valve
for greater support
High-performance 2.5W oil by Motorex

- Stanchion diameter: 35 mm
- Left side: air with internal travel adjustment from 130 mm to 170 mm, convertible to coil
- Right side: High-speed compression, low-speed compression and low-speed rebound adjustment.
- Maximum rotor diameter: 203 mm
- Minimum rotor diameter: 180 mm direct post mount
- Steerer tube: tapered 1" 1/8 - 1.5", aluminium
- Crown material: aluminium
- Stanchion material: aluminium
- Maximum tyre diameter: width 64mm
- Weight: 2070 g

Wheel Size: 27.5" (650B)
E-bike specific: No
Travel: 130 mm
Suspension spring type: Air
Steerer tube diameter: Tapered 1" 1/8 - 1.5"
Rake / Offset: 44 mm
Lockout system: On the fork crown
Stanchion diameter: 35 mm
Wheel axle type: PP15 x 110 mm Boost
Boost: Yes
Brake type: Disc
Brake mount type: Post Mount
Maximum rotor diameter: 203 mm
Colour: Matt black,
