Kellys THEOS F60 - 820Wh

SKU: 8585053828884
Out of stock
$3,724.00 excl. VAT
RRP: $4,665.00
Colour

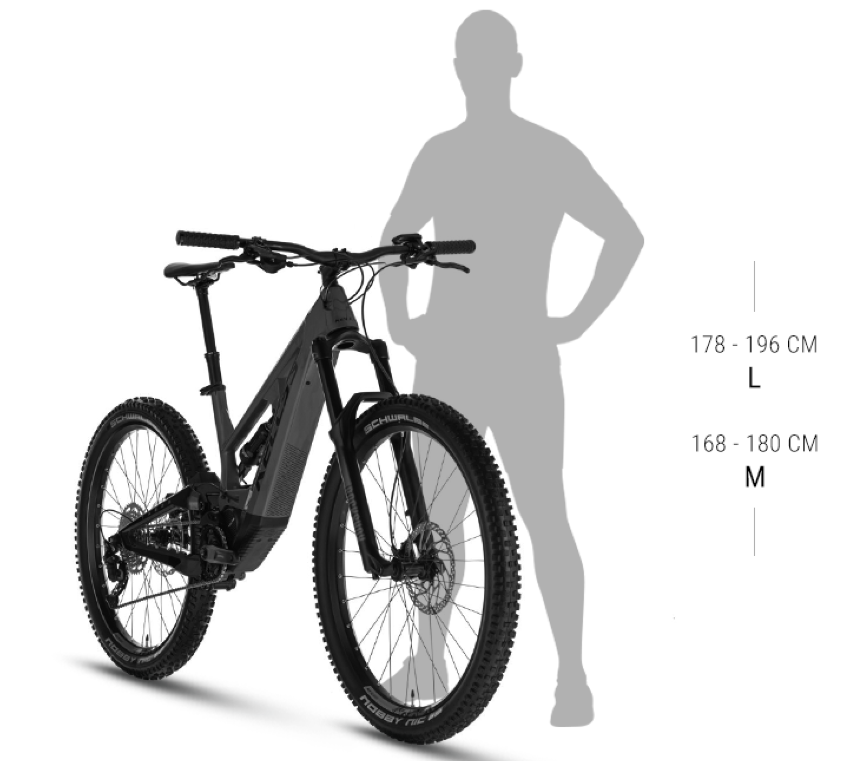

Size

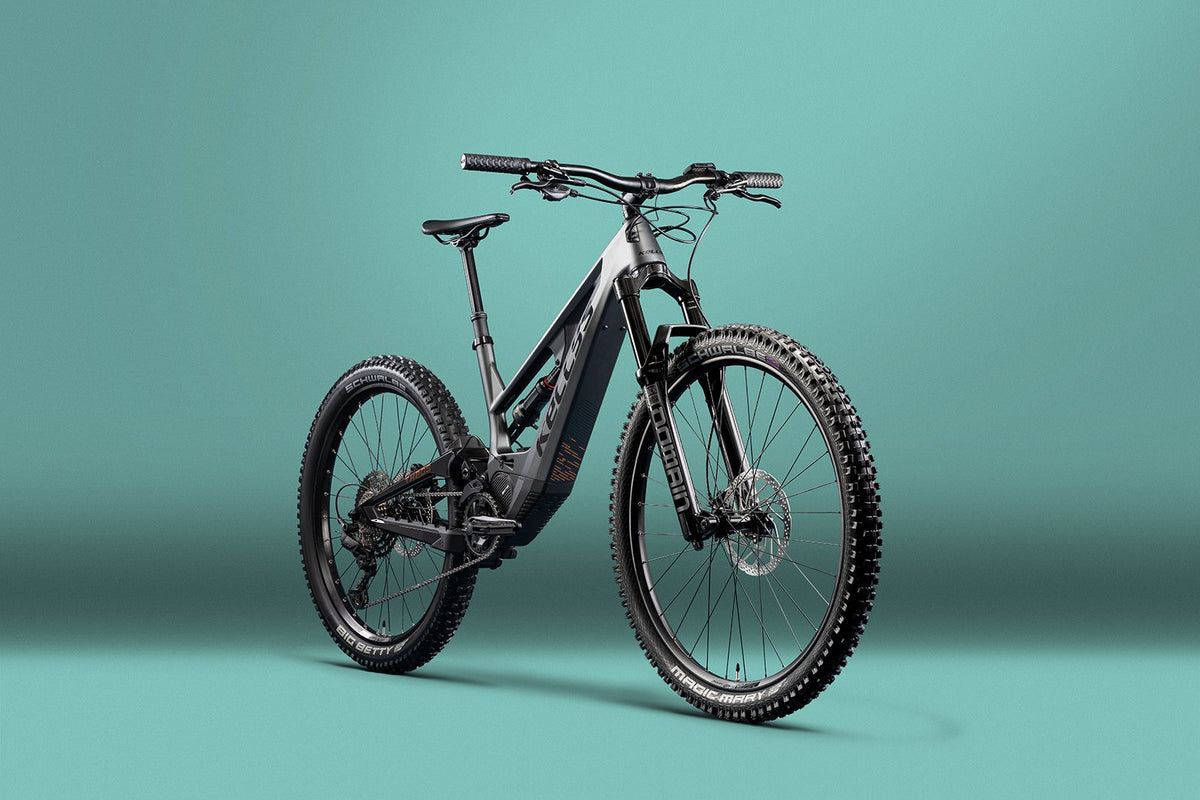

The Kellys Theos F60 is a new full-suspension e-MTB, available in Anthracite in sizes M and L. It combines the Shimano EP801 motor with a Shimano Deore XT Linkglide drivetrain and RockShox suspension: it is suitable if you are looking for an electric mountain bike for trail rides.

The THEOS F60 accompanies you on the trails with a carbon and aramid frame, which Kellys describes as lightweight and impact-resistant.

  • Carbon-Aramid Composite frame: The Kellys Theos F100 Carbon-Aramid Composite frame is designed and manufactured in Europe.

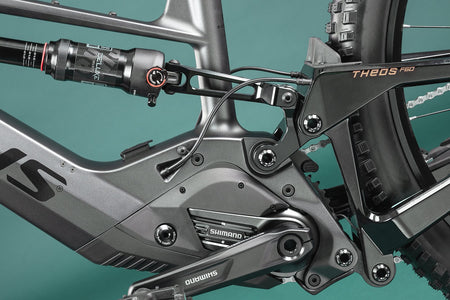

  • Shimano EP801 motor: The Shimano EP801 motor delivers 85 Nm of torque and operates at 36 V.
  • Removable internal battery: The 820 Wh, 23 Ah Kellys Re-Charge K1 is developed with Kellys-BMZ.
  • RockShox suspension: Domain R fork with 150 mm of travel and Super Deluxe Select+ RT shock, with 140 mm of rear travel.
  • Deore XT drivetrain: Shimano Deore XT Linkglide M8130 rear derailleur, CS-LG600-11 11-50T cassette and 34T chainring.
  • Hydraulic disc brakes: The Shimano Deore M6120 brakes use a 220 mm RT64 front rotor and a 203 mm EM300 rear rotor.

Choose it if you want to tackle trails with a mullet configuration, combining different wheel sizes, and a dropper seatpost to adjust saddle height during your ride.
Frame
KELLYS THEOS F100 Carbon-Aramid Composite frame / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
Fork
ROCK SHOX Domain R (29") Boost, 150 mm, 38mm stanchions, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Rear shock
ROCK SHOX Super Deluxe Select+ RT, DebonAir+ / Open-Threshold (210x55 mm)
Front tyre
SCHWALBE Magic Mary Evo Super Trail 62-622 (29x2.40) Tubeless Easy, ADDIX Ultra Soft, folding
Rear tyre
SCHWALBE Big Betty Evo Super Trail 65-584 (27.5x2.60) Tubeless Easy, ADDIX Soft, folding
Front wheel
KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
Rear wheel
KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
Shifters
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
Rear derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
Cassette
SHIMANO Linkglide CS-LG600-11 (11-50T)
Chain
SHIMANO Linkglide CN-LG500
Crankset
SHIMANO EP6 EM600 / CRE70-B (34T) - length 170 mm
Bottom bracket
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
Grips
KLS Poison OneLockon
Headset
ACROS 1.8 tapered semi-integrated
Brakes
SHIMANO Deore M6120 Hydraulic Disc
Front brake lever
SHIMANO Deore BL-M6100
Rear brake lever
SHIMANO Deore BL-M6100
Front brake rotor
SHIMANO RT64 220 mm
Rear brake rotor
SHIMANO EM300 203 mm
Motor
SHIMANO EP801, 85 Nm, 36 V
Motor display
Shimano SC-EN500 cycle computer with assist switch
Battery
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
