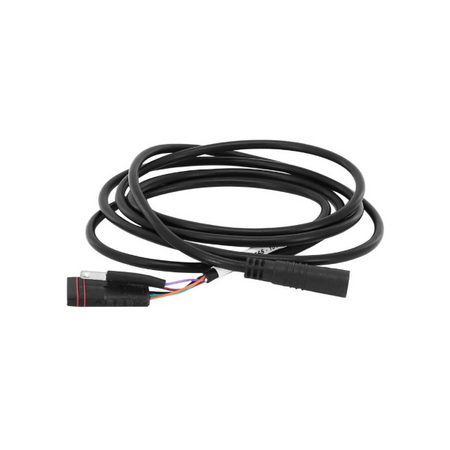

Brose C92565-100 Display Cable for External Wake-Up

The Brose C92565-100 display cable connects the motor to the handlebar display. It is designed for anyone with a Brose e-bike with an external Wake-Up function who needs to replace the original cable.

• 1340 mm long, connects the motor to the handlebar display
• For Brose e-bikes with external Wake-Up directly on the battery
• Flat 4-pin connector at the motor end, purple HIGO connector at the display end
• Before ordering, check that the motor has a second, smaller port next to the flat one
• If Wake-Up is activated from the display, the internal version with a 5-pin cable is required

Technical specifications

• Manufacturer code: C92565-100 (item number 7899)
• Length: 1340 mm
• Motor connector: Flat 4-pin connector
• Display connector: Purple HIGO connector
• Compatibility: Brose e-bikes with external Wake-Up function directly on the battery
• Colour: Black
• Package contents: 1 Brose display cable for external Wake-Up
